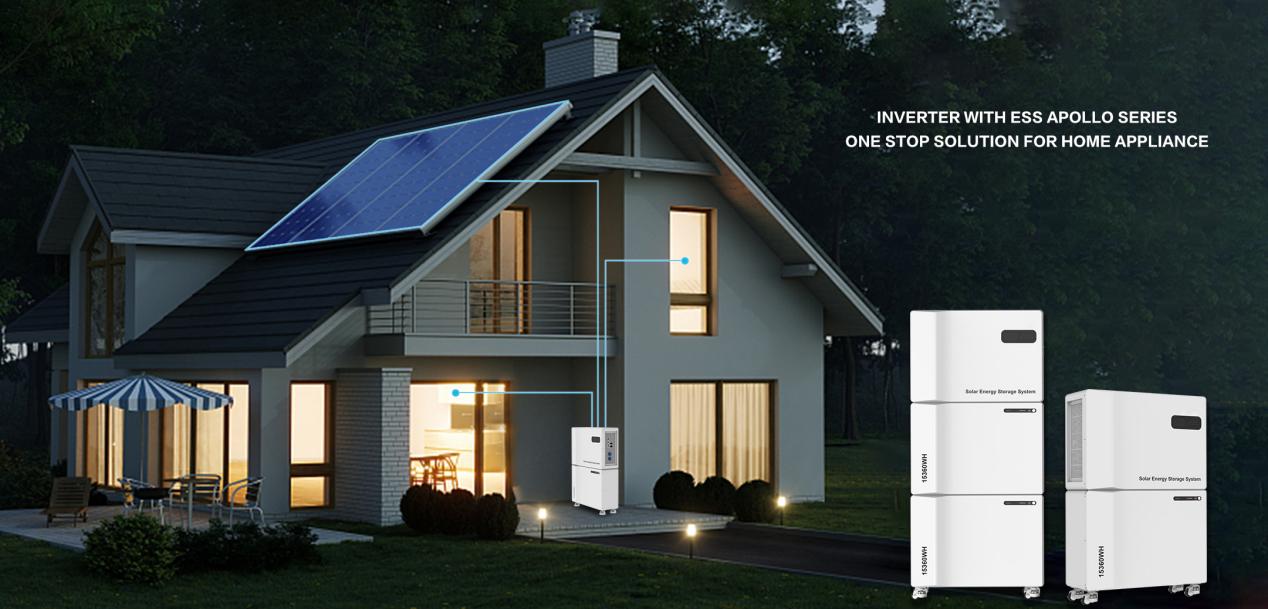

ALP energy storage home system refers to the storage of electricity locally by household energy storage equipment for later use. Our energy storage system for home consists of a battery home energy storage, inverters, and other components. We use brand new A-grade LiFePo4 battery, equipped with an intelligent battery management system for charging and discharging cycles. The inverter converts DC energy to AC energy to meet the requirements for household electricity. Normally, this product is installed in combination with a PV system to provide green electricity to household users, reduce energy consumption, and reduce negative impacts on the environment. It's widely used in remote areas or areas with unstable power supply to provide a reliable, stable, and cost-effective energy supply.
Working Diagram
Product Features
* Private design, modular arbitrary stacking, automatic dialing, convenient installation, and wire-free.
* Brand new A-grade LiFePo4, 6000 times cycle life, Lifespan up to 10 years.
* Inverter and controller integrated, multiple protections. MPPT maximum current over 100A
* Intelligent LCD display, LED indicator light, and real-time monitoring of operating data.
* Full power pure sine wave, stable discharge waveform, better protection for household appliances
* Support RS485 and CAN communication ports
* Famous brand BMS, compatible with most
inverters in the market.
Product Parameters
|
Type |
ALP Y-100 |
|
|
Inverter |
Rated power |
10kw |
|
AC rated voltage |
110/230V (split phase) |
|
|
Rated frequency |
50/60Hz |
|
|
Efficiency |
≥98% |
|
|
Transfer time |
10ms |
|
|
Waveform |
Pure Sine wave |
|
|
Battery Overcharge |
58.4V |
|
|
Battery undervoltage alarm |
45V |
|
|
Constant voltage charge |
58.4V |
|
|
Float voltage |
56V |
|
|
Max charging current |
160A |
|
|
Communication interface |
RS232 (lnverter)/ RS485(BMS) |
|
|
Dimension |
70*26*51cm |
|
|
AC Input |
Norminal voltage |
110VAC |
|
Voltage range |
75-135VAC |
|
|
Rated frequency |
50/60Hz |
|
|
Frequency range |
40-70HZ |
|
|
Rated current |
104A |
|
|
Max AC current |
120A |
|
|
PV Input |
Max voltage |
150V |
|
Optimum voltage |
60-105V |
|
|
Voltage range |
6V-150V |
|
|
Max power |
6400W |
|
|
Rated capacity |
15360Wh(300Ah) 30720Wh(600Ah) |
|
|
Battery |
Norminal voltage |
51.2V |
|
Discharge voltage range |
43.2V-58.4V |
|
|
Standard charging current |
100A |
|
|
Max charging current |
160A |
|
|
Max discharging current |
200A; 400A |
|
|
Depth of discharge |
95% |
|
|
Communication interface |
CAN/IRS485 |
|
|
Cycle life |
≥6000, 25±2℃, 0.5℃, EOL80% |
|
|
Working temperature range |
Charge: 0℃-50℃; Discharge: -10℃-60℃ |
|
|
Storage temperature |
-10℃-60℃ |
|
|
Dimension |
70*26*51cm |
Operation Function
Packing List & Transportation
Safety Rules
lmportant Warning Signs
* Indicates that the equipment is in a dangerous state and the switch should be turned off immediately to prevent injury.
* Indicates that the system must be turned off or disconnected for 5 minutes before being touched or put into use to prevent electric shock.
* Indicates that the contact surface is at risk of high temperature
* Please refer to the operating instructions.
Installation Environment
* Do not use in high temperature (above 55°C), humid (humidity greater than 90%),or places with danger of gas or dust explosion.
* Do not place heavy objects on top of the device and check that the ventilation holes are not blocked by other components.
* Do not install in living rooms or entrance and exit areas.
* Do not install it in a location with direct sunlight or where the ambient temperature changes greatly.
Installation
* Make sure the DC and AC input cable have fuses and appropriate circuit breakers.
* Before connecting AC power to the device, please make sure that the AC power is disconnected.
* The equipment must be installed by a professional and must be tested with a properly calibrated voltage tester.
* Make sure using the correct cable specifications while installing
* Do not short-circuit the positive and negative poles or install them inreverse.
* Do not touch DC conductors.
* Do not wipe the system with a wet cloth.
* Do not open the inverter and battery.
* Do not touch uninsulated cable ends.
* If the battery pack is damaged or malfunctions, stop using it immediately
* Do not touch the battery socket (even if the inverter is disconnected from the DC or AC side)
Transportation
* If the product is exposed to fire or mechanical shock, the battery casing will be extremely damaged and dangerous substances may be released, causing harm.
* During transport, a certified fire extinguisher with a minimum capacity of 2kg must be carried with you. Smoking is strictly prohibited in and near the vehicle during loading and unloading.
* During transportation or installation, please ensure that more than 2 people work together to move it to avoid injury, as the product is very heavy.
Quality Assurance
* If the product failure during warranty, please contact a professional person to repair.
* The product nameplate cannot be torn off; otherwise, warranty service wil be void.
* The following 7 points are not included in the warranty scope. lf the customer requires repairment, should pay for the maintenance service.
(1) The equipment is damaged during transportation which is not arranged by our company;
(2) The equipment has been improperly installed, reinstalled or used,
(3) The equipment operated in harsh environments.
(4) The malfunction or damage was caused by installation, repair, modification or disassembly.
(5) Repaired by non-professionals
(6) By using of non-standard accessories
(7) Damage caused by unexpected natural factors
