Plug-in Solar Panel Kits For Balcony
Balcony solar panel kit is an all-in-one micro balcony solar power system solution, which is easily installed (just plug it into a socket) and immediately helps you save on bills and generate clean green energy.
Designed for urban families, tenants, and small commercial scenarios, the balcony solar power system does not require professional electricians or complex wiring and can be installed in 10 minutes. Our balcony solar panel kit includes high-efficiency monocrystalline silicon solar panels, smart inverters, plug-and-play adapters, and optional energy storage modules. It is directly connected to the home socket to convert sunlight into electricity, reduce electricity bills in real time, and reduce carbon emissions by up to 1.5 tons per year, helping green and low-carbon life.
Key Features
Plug and play design
Adapts to standard household sockets, no need to apply for grid transformation, no drilling installation.
Modular free expansion
Supports a flexible combination of 1-4 solar panels (200W to 800W), suitable for all kinds of balcony space.
Intelligent anti-backflow technology
Automatically matches household electricity demand, prioritizes storage of surplus electricity, and eliminates energy waste.
Ultra-high conversion rate
Using PERC+HJT bifacial power generation technology, power generation efficiency is increased by 15% on rainy days.
Optional energy storage battery
Seamless switching of power supply at night/power outage, to ensure basic household electricity consumption.
IP68 protection level
Wind and snow resistance, salt spray resistance, stable operation in extreme environments from -25℃ to 60℃.

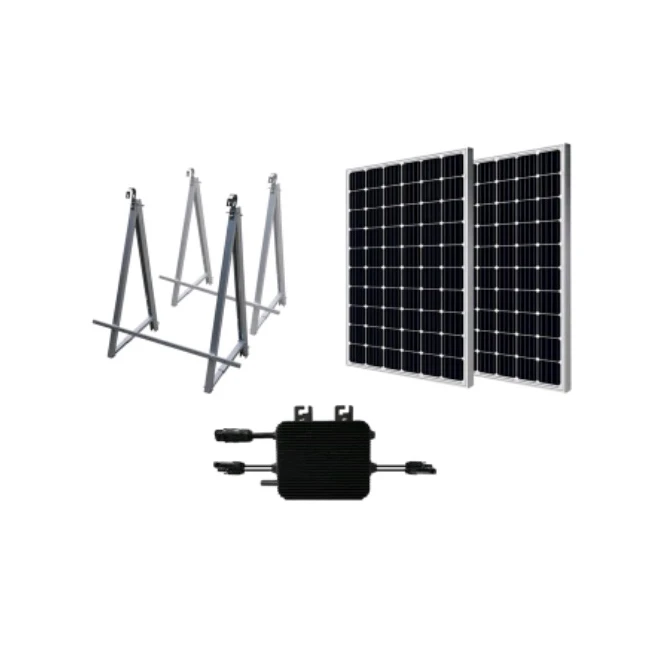

Balcony Plug-in Solar Panel Kits Configuration
· Solar panel 420Wp x2
· Micro inverter 800W x1
· Mounting brackets with installation accessories
· Connection cable
Electrical Characteristics
| Maximum power (Pmax) | 420W |
| Open-circuit voltage (Voc) | 38.46V |
| Voltage at Pmax (Vmp) | 31.97V |
| Short-circuit current (Isc) | 14.09A |
| Current at Pmax (lmp) | 13.14A |
| Cells Efficiency (%) | 21.6% |
| The maximum system voltage | DC1500V (IEC) |
| Operating Temperature | -40℃~85℃ |
| Power temperature coefficient | -0.35%/℃ |
| Voltage temperature coefficient | -0.26%/℃ |
| Current temperature coefficient | +0.048%/℃ |
| Output power tolerance | ±3% |
| The overall composition of the balcony solar power system includes the following components: | Solar Panel *2pcs Micro Inverter *1pcs Mounting Bracket *1 set MC4 Compatible Extension Cable 5m *2 pair Grid Cable 3m *1pcs |
Module Diagram
| Specifications | |
| Solar cell brand | Monocrystalline |
| No.of cells | 108 |
| Solar Size | 1720*1132*30mm |
| Weight (set) | 2*10.8KG |
| Max Load | +3600Pa/-2400Pa |
Micro Inverter
| INPUT (DC) | |
| Model | ALP 700 |
| Module Type | 2x435W |
| Recommended Max PV Power (Wp) | 400WX2 |
| Max DC Open Circuit Voltage (Vdc) | 60 |
| Max DC Input Current (Adc) | 14X2 |
| MPPT Tracking Range (Vdc) | 22-55 |
| OUTPUT (AC) | |
| Model | ALP 600 |
| Module Type | 2x435W |
| Peak AC Output Power (Wp) | 700 |
| Peak Efficiency (Wp) | 92.7% |
| Nominal Power Grid Voltage (Vac) | 230/120 |
| Rated Output Current(Aac) | 3.1 |
| Nominal Frequency (Hz) | 60/50 |
| Warranty | 5 years |
| Dimension | 280X200X41.6mm |
Application Scenarios
Choose the products that suits you best.
Urban families
Reduce electricity expenses for high-energy consumption equipment such as air conditioners, floor heating, and charging piles.
01
Renters
No drilling design, removable, and take away when moving, the investment will never be wasted.
02
Small and micro businesses
Cafes, convenience stores, etc. achieve "photovoltaic power supply + grid complementation" during the daytime peak electricity consumption.
03
Outdoor scenes
With energy storage batteries, provide off-grid power for RVs, camping lights, and drones.
04
Why Choose ALP Balcony Solar Panel Kit?
We are looking for a cooperative partner to expand our business.
Easy Installation
Lightweight Solar panels, plug-and-play design.
Customizable
Adjust the power 300W/400W/600W/800W/1000W/1200W.
Maximum Efficiency
Micro-inverter optimizes performance.
Reliability
High efficiency monocrystalline solar cells with a conversion rate of up to 22.5%, and offer a long service life.
Cost-Effective
Reduce your bills.
Eco-Friendly
Clean and renewable energy.
